Clean Room Tent

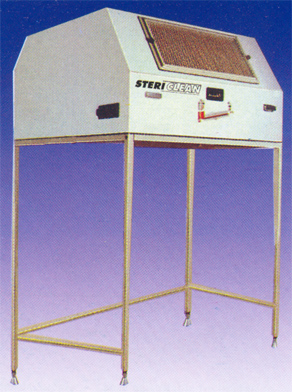

DM–199 Stericlean Portable Clean Room Tent Class 100/10,000 Vertical Flow


Introduction
The portable clean room tents for very useful equipment are creating a clean room within an existing room, without distributing the existing room structure. Clean room tents can be designed to provided class 100 or class 10,000 level of cleanliness as per U.S. Fed Std. 209. These are very useful for providing clean air over sophisticated operation on big size machines, R & D work, post operative recovery etc.

Salient Features

These are basically vertical down air flow clean air equipments, similar to vertical laminar flow equipments, but can be made of big sizes to form a clean room. These equipments are provided with suitable stand, the sides walls of the stand are made of flexible PVC sheets & that is why these equipments are known as clean room with flexible walls. Optionally hard walls in lieu of flexible walls can be provided. The stand is provided with caster wheels for ease of movement. These can be designed & fabricated of any desired size to suit every requirement. The heart of these equipment are HEPA filter, which filter the air to an efficiency of 99.97% down to 0.3 micron particle size, which are duly DOP tested. We have modern & up-to-date production, quality control & test facilities for manufacturing & testing.
This units are suitably Illuminated.

Construction
These are modular type equipment. The body is constructed out of commercial board, having all external surfaces laminated & inner surfaces are epoxy painted or of CRCA M.S. Sheets or Aluminium, duly powder coated. The stand is made of M.S. Square/rectangular pipe & the walls clean room tent are flexible PV sheet of hard PVC sheet.

Particle Dust Count Validation

At site after installation & extra cost.

Power Supply
220/240 Volts, AC supply.

Optional Accessories :–
• Manometer
• UV Light
• Differential Pressure Manometer (Electronic)
• Particle dust count validation.
Model
CRT
CRT
CRT
CRT
CRT
CRT

44
54
64
84
66
94
Working Area
4’×4’
5’×4’
6’×4’
8’×4’
6’×6’
9’×4’
Ht. Of Stand
HEPA Filter Size
4’×2’×6'
2’×215’×6'
3’×2’×6'
4’×2’×6'
3’×2’×6'
3’×2’×6'

Other sizes on request







DM–195 Stericlean Sterile Material Storage Cabinet: (Vertical Flow)


Self standing, down flow clean air cabinet for use in clean rooms for storage of materials. Suitable for Pharmaceuticals, Hospitals and O/T, Electronic Industry etc. Supplied complete with HEPA & Pre Filter, Motor Blower, Shelves etc. but W/O optional accessories

Optional Accessories :–
• Static Pressure Manometer
• Built in U.V. Germicidal Light
• Exhaust Ducting per running ft.
• Extra Shelves












Model
SSCV–32
SSCV–42
Working Area
3’x2’x5'
4’x2’x5'
Size of HEPA filter
3’x1.5’x6
4’x1.5’x6
No. of HEPA filter
1
1
No. of Shelves (Supplied with Pre filters)
2
2
