York Servo Stabilizer
is ideally suited to feed stabilized voltage simultaneously to different
sophisticated instruments in the laboratory. The automatic over
cutout safe guards the stabilizer against damage because of over
loading. Solid state control with ambient temp. compensation, step
correction, 95% efficiency, no effect of supply frequency variation,
facility for auto-manual operation Input 160-260 volts or
180-270 volts, output 230 volts + 1%.
Suitable for single phase, 50 Hz, AC supply.
Capacity: 1 KVA, 2 KVA, 3 KVA, 5 KVA, 7 KVA, 10 KVA.
High/Low voltage cut out.

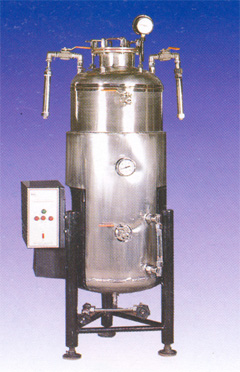

Fermentor vessel is made of Stainless steel and heated through steam
heating system with electric element. Having opening lid on the
top of vessel suitable for cleaning and filling purpose. The vessel
fitted with pressure gauge pressure release valve disable at 17
psi pressure. Provided with in line filter for sterile incoming
and outgoing air. Vessel is also provided with built in cooling
coil for inlet and outlet of cold water. The inoculation port and
sampling ports, one port fitted with temperature gauge. The entire
fermentor assembly is covered with steam jacket having safety valve
and auto pressure cutoff device.
Overall Capacity : 140 lit.
Working capacity : 100 lit
Overall capacity : 280 lit
Working capacity : 200 lit
Oil free compressor for supply of Air to fermentor for shaking
