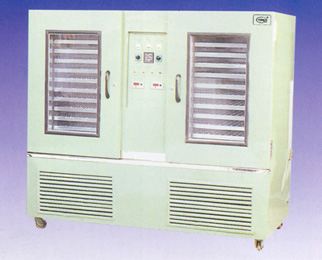

Yorco Seed Germinator
range of YORCO Seed Germinator sets new standard for conducting
experiments in the field of seed germination of variety of seeds
under different environmental conditions of temperature, humidity,
illumination. Both chambers have different environmental conditions.
Temperature Control : Temperature of both the chambers
can be controlled separately and independently by thermostats. In
one Chamber - The temperature can be controlled from ambient to
50°C (i.e. Heating system only is provided). In another chamber-
Temperature can be controlled from 2°C to 50°C (with help
of refrigerate system comprising of hermetically sealed compressor
suitable heating system).
Construction : Outer body is made of MS Sheet duly
pre treated and finished with epoxy powder paint. Inner chamber
is made of stainless steel or anodized aluminium Sheets of suitable
thickness. 14 Nos. Trays made of aluminium or stainless steel are
provided in each chamber, of size 430 × 480mm each. Both the
chambers are insulated with glass wool to minimise the temperature
loss and enable to achieve the required conditions at the earliest.
Both chambers have independent controls. Viewing window of glass
are provided in the doors, for viewing purpose. Doors are insulated
against any heat loss wheels provided for ease of mobility. Air
circulation blower unit Provided for ensuring uniform temperature
within the chambers. Cooling is achieve by refrigeration system
by hermetically sealed compressor of high quality, along with other
parts such as condensor, cooling coils, fan motor etc.
Illumination : Both the chambers are equipped with
fluorescent lights fro enabling photosynthesis & are switched
ON/OFF by 0-24 hours timer to simulate the day/night conditions.
Humidification : Humidity inside the chamber is provided
by steam generated through heating water with the help of immersion
type heater. A water reservoir is provided in the machine with heaters
and controls for this purpose, to achieve 90 to 95% +3% RH (not
Control Panel : Switches and indicating lights for
cooling, heating, humidity and illumination, timer, thermostats,
etc. are provided on the control panel for easy access. Suitable
to work on 230Volts single phase, 50Hz AC supply.
Size of each chamber :
W × H × D
555 × 910 × 605 mm
Yorco Seed Germinator
as per YSI-466 but fitted with heating and cooling systems in both
Optional Accessories for (YSI466, 467) :
Voltage Stabilizers 3 KVA for YSI466
Voltage Stabilizers 5 KVA for YSI467
Digital temp. Indicator in lieu of thermostat.
Digital temp. Controller cum Indicator in lieu of thermostat
Mirco processed based PID temp. controller cum indicator
in lieu of thermostat
Interior illumination the 3 tube lights 60cm., per chamber.
