Bacteriological Incubators

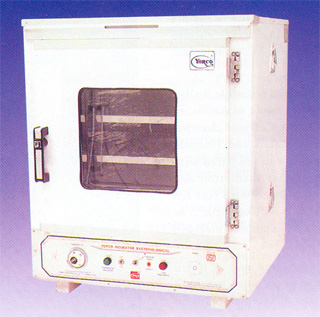

YSI–438 Yorco Incubator Bacteriological (M. Type)

True to their name YORCO Incubator Bacteriological (Memmert type) got recognised by Bureau of Indian Standards for the FIRST TIME IN INDIA and now carries ISI mark. The perfect choice for reliable day to day operation in variety of uses. Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and Incubation of hydroxy steroids.

Construction :– YORCO incubators are sturdy, with double walled construction with complete inner chamber made of Anodized Aluminium or Highly Polished Stainless Steel. Outer chamber is made of Mild Steel Sheet, finished with powder coated paint. 75 mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 3 removable shelves. SHELVES are made of fully Anodized Aluminium Sheet or Polished Stainless Steel Sheet as per chamber. Door is insulated & fitted with heavy hinges. Door has Double glass window which facilitate inspection of samples without opening the door. Heating elements, made of high grade imported nichrome wire are put inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.

Temperature Control :– Temperature is controlled by imported capillary type thermostat from ambient to 80°C. Temperature control knob is graduated in centigrade degrees after actually observing the temperature in steady state. An L-shaped prismatic glass Thermometer is fitted on top of the Incubator for reading the chamber temperature.

Ventilation :– Air ventilators are provided on both sides at top to flue away any gas or fumes.

Control Panel :– The equipment is provided with a panel having a thermostat control knob, ON/OFF switch and two pilot lamps.

Power Requirement :– Supplied with cord and plug suitable to operate on 220 V single phase, 50 Hz, AC supply.

Size of inner chamber :–
W × H × D No. of Shelves
300 × 300 × 300 mm 2
355 × 355 × 355 mm 2
455 × 455 × 455 mm 2
455 × 605 × 455 mm 3
* 605 × 605 × 605 mm 3
* 605 × 910 × 455 mm 3
* 605 × 910 × 605 mm 3
* These sizes are provided with air circulating fan as standard feature.

Optional Accessories :–
• Timer
• Air Circulating Fan
• Digital Indicator in lieu of L-shaped thermometer.
• Digital Indicator – cum – Controller Electronic in lieu of L-shaped thermometer & thermostat.
• Micro processor based PID Temp. controller-cu-indicator in lieu of thermostat & L-shaped thermometer.
