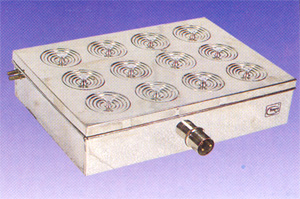

Single Wall, Concentric Rings, Inner Chamber S.S. Great for evaporating liquids like alcohol or for melting solids such as agar. Concentric rings can be removed to accommodate containers of various sizes.
Single walled chamber made of Stainless Steel. The concentric rings are chrome plated. The temp. is controlled by “IMPORTED” capillary type thermostat from 5°C above room temp. to 90°C.
Supplied complete with two indicator lamps, concentric rings, ON/OFF Switch, Cord & Plug but without thermometer. Suitable to operate on 220V, 1ph, 50 Hz, AC supply.

Inner chamber S.S :–
  L   ×  W  ×   D
300 × 250 × 100 mm with 6 holes of 75mm dia
300 × 300 × 100 mm with 9 holes of 75mm dia
405 × 300 × 100 mm with 12 holes of 75mm dia

Optional Accessories :–
• Digital temperature indicator.
• Digital temperature Controller cum indicator.

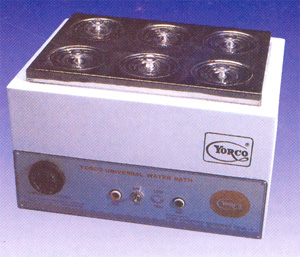

YSI–412 York Water Bath
---Rectangular, Thermostatic Control

Great for evaporating liquids like alcohol or for melting solids such as agar. Concentric rings can be removed to accommodate containers of various sizes.
Double walled chamber made of Stainless Steel and outer wall made of thick mild steel sheet duly finished in white stove enamel. The gap between outer and inner walls in filled with special grade glass wool insulation. The concentric rings are chrome plated. The temp. is controlled by reputed make capillary thermostat from 5°C above room temp. to 90°C.
Supplied complete with two indicator lamps, concentric rings, ON/OFF Switch, Cord & Plug but without thermometer. Suitable to operate on 220 V, 1 ph, 50 Hz, AC supply.

Size of the chamber :–
300 × 250 × 100 with 6 holes of 75 mm dia
300 × 300 × 100 with 9 holes of 75 mm dia
405 × 300 × 100 with 12 holes of 75 mm dia

Optional Accessories :–
• Digital Temperature Indicator
• Digital Temperature Controller cum Indicator.
.
