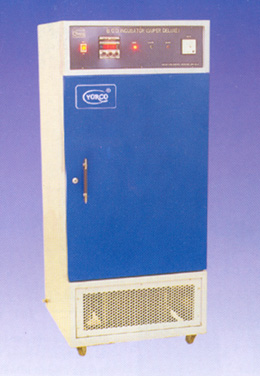

YSI–440 York BOD Incubator
----"Super Deluxe” with Solid State

Most versatile and highly reliable low temperature incubator, to make Biochemical Oxygen Demand determinations and for preservation of vaccines, insulin, lever extracts, chemicals etc.

Construction :–
Robust Construction. Outer cabinet is made of M.S. Sheet, duly pre treated & finished with epoxy powder coated paint for lasting finish. Inner chamber is made of high polished stainless steel/aluminium (anodized). It has provision for allowing wide range of shelf positions & spacings. SS/Aluminium trays are also provided. Chamber is duly insulated to minimise heat loss. Two door are provided. Outer door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss. Door is provided with lock and key. Inner door is made of transparent acrylic glass for inspecting the specimens inside chamber, without opening the door and with minimum temperature loss.

Temperature Control :–
The heart of the YORCO B.O.D. Incubator is the excellent and reliable solid state temperature controller cum indicator digital display, range from 5°C to 50°C ± 0.5°C. Hermetically sealed, high performance compressor works efficiently to lower the inside chamber temperature. Heating elements are placed in the path of moving air duly insulated from the body. Cooling coils also lie in the air circulation path. Air is circulated by a double shaft self-cooled, blower to keep the temp. uniform throughout the inner chamber. A safety thermostat is provided, which switches off the heaters in the event of failure of the normal temp. control system to protect the specimens from excessive heat. Also fitted with a door operated lamp for illumination inside the chamber. Caster wheel provided at bottom for easy mobility.

Control Panel :–
All controls and circuitry are housed at the top of the incubator and therefore protected from spillage. Separate indicator lamps for mains, heating and cooling are fitted. Temperature setting fine and coarse knobs allow the user to set any desired temp. A Voltmeter is provided on the panel to read the incoming voltage.

Salient Feature :–
YORCO BOD INCUBATOR switches from heating to cooling and vice versa irrespective of the ambient temperature because of its unique design and thus is capable of working without any user intervention. Supplied complete with 3 shelves of anodized Aluminium or Stainless Steel as per the chamber, cord and plug, to work on 220 Volts, 1 Phase, 50 Hz, AC supply.

Optional Accessories (YSI–440) :–
• Interior illumination with 3 Nos. fluorescent tubes.
• Automatic cyclic timer 0–24 hrs. regulating illumination cycle.
• Arrangement for incubation carbon dioxide & air mixture.
• Carbon–di–oxide Cylinder 9 liters.
• Air compressor.
• Voltage Stabilizer 3 KVA.

Available in following chamber sizes :–
W × H × D Cap. Cu. ft.
455 × 605 × 415 mm 4.0
500 × 800 × 415 mm 6.1
565 × 865 × 550 mm 10.0
650 × 900 × 550 mm 12.0
700 × 900 × 650 mm 15.0

YSI–441 York Humidity System (Steam) for BOD Incubator

BOD Incubator can be provided with humidity arrangement. Humidity is created by condensation of steam generated by heaters dipped in water. Humidity is controlled by imported Humidistat from ambient to 95% ± 3% RH.

YSI– 441-A York Humidity System (Water Spray) for BOD Incubator

Humidity is created by spraying water in the form of fine mist generated with the help of air compressor and other accessories which are supplied with the unit. Humidity is controlled by imported Humidistat from ambient to 95% ± 3% RH.
