Environmental Chamber

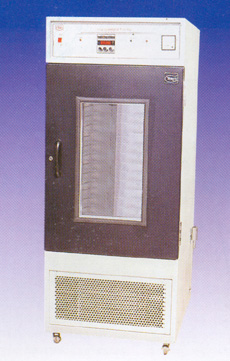

YSI–455 Yorco Environmental Chamber

Elegantly designed double walled cabinet to provide controlled atmosphere by varying temp. and Humidity for conducting of various R & D tests as, Plant & Animal growth test, Determination of dielectric test, Packed material vapor test, Insulation test of electrical component. Inner Chamber made of S.S.–304 grade thick sheets and outer wall is of thick cold rolled steel duly pretreated and powder coated. A heavy aligned door with a provision of see though window is also provided.

Temp. range from 10 to 60°C ± 2°C and Rel. humidity ambient to 95% ± 5% are controlled with solid state digital controller cum indicator for displaying temp. & humidity in %age directly. Heater take care of temp. above ambient where as hermetically sealed. compressor of reputed make (Shriram/Kirloskor) maintains temp. below ambient, where as humidity is created by natural mist through compressored air and spray system.

Size :– Same as YSI–454

Optional Accessories :–
• Voltage Stabilizer ...... 3 KVA.
• Micro processor based PID temp. controller–cum–indicator in lieu of thermostat.
• PID with RS 232 interface for your 80 col. printer.
YSI–457 Yorco Low Temperature Humidity Cabinet
Same as YSI – 455, but temperature range from –20°C to 40°C ± 1°C.

Inner Chamber :– 10 Cu. Ft.




YSI–457 Yorco Low Temperature Humidity Cabinet

Same as YSI – 455, but temperature range from –20°C to 40°C ± 1°C.

Inner Chamber :– 10 Cu. Ft.
