Phytotron

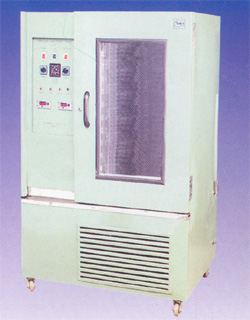

YSI–442 Yorco Laboratory Biological Incubator ‘Super Deluxe’ for Environmental studies (Environmental Chamber/ Growth Chamber) Phytotron

These are well designed for conducting different Laboratory & Research experiments to study growth of plants and animals under controlled environmental conditions and also in the fields of enzymatic digestion processes, incubation etc.

Construction :– Robust construction. Interior made of polished S.S. sheet, intermediate walls of G.I. Sheet and Outer cabinet is made of M.S. Sheet duly pretreated & finished with epoxy powder paint. Glass wool insulation is provided to prevent thermal losses. Double walled door with a gasket seals the inner chamber from outside air. Viewing glass window allows inspection of samples without opening the door or disturbing the temperature. 4 S.S. adjustable shelves are provided. Air ventilation and arrangement to introduce fresh air supply.

Cooling/Heating System :– Cooling is achieved by refrigeration system using a hermetically sealed air cooled compressor and other parts of high quality. This system is fixed at the lower part of the incubator. Cooling coil is fixed in the rear/side portion of the chamber in the path of moving air.
Heating is provided with heaters duly insulated from the body & are fixed near the cooling coil. The blower circulate the air into chamber through heaters/cooling coils to ensure uniformity of temperature inside the chamber.

Temperature. Control :– Temperature is controlled by solid state electronic temperature controller cum indicator digital display using Pt 100 RTD sensor device. Temp. range 1°C to 50°C ±1°C.

Humidification :– It is controlled by humidistat and is achieved by spraying water vapor inside the chamber with the help of pump/air compressor. This system create the require humidity from ambient to 95% ±3% RH. Arrangement exists only for increasing the humidity & not for decreasing the humidity.

Illumination :– High intensity illumination of approx 12000 LUX is provided inside the chamber by fluorescent tubes, cyclically creating day/night conditions automatically controlled through 24 hrs. timer.

Control Panel :– All control, expect humidistat, are fitted in the front panel for humidity, illumination, timer, etc. & are easily accessible.
Power Supply :– Suitable to work on 230 Volts, 50 Hz, Single Phase, AC supply.

Available in following chamber sizes :–
W × H × D No. of Shelves
665 × 856 × 550 mm 3
765 × 1365 × 670 mm 4

Optional Accessories :–
• Voltage Stabilizer 5 KVA
• Two set point digital temp. controller cum indicator.
