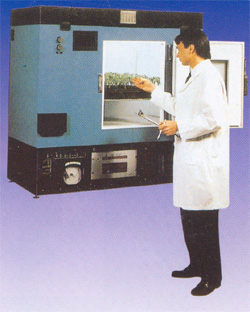

Yorco Plant Growth Chamber
equipment for Plant growth and animal studies. Provision for light,
temperature and humidity are made to test plant growth and analyse
their flowering cycle.
Inner chamber made of S.S. 304 and outer of thick cold rolled steel
duly pretreated & powder coated. 75 mm thick glass wool of high
density is sandwiched between the two walls to provide insulation.
A see through window is provided for inspection of plants. Heating
is controlled by solid state digital temp controller cum indicator
to maintain temp. between 15°C to 50°C. A 7 days programmable
timer is provided.
Cooling is maintained by hermetically sealed compressor. Provision
for 50,000 lux is provided with a mixture of incandescent lamp &
fluorescent light to give effect of day light, whereas humidity
is controlled from 55% to 95% ± 5% by humidistat.

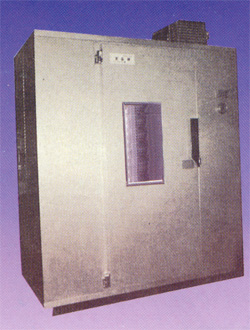

Chamber Volume : 10, 20, 30, 45, 50 Cuft.
range 5°C above ambient to 60°C ± 1°C. Designed
for vast number of incubation applications, can be installed even
in hallway room or wherever convenient.
Design features includes enamelled steel exterior, aluminium or
S.S. interior, ventilators, internal lighting, exhaust fan etc.
Suitably insulated, 300 mm sq. inspection window at the door permits
inside view without opening the door.
Complete with panel, housing all controls, circulating fan. Temperature
indicator cum Controller etc. Supplied factory assembled, complete
with cord and plug, to work on 220 Volts, 1 Ph, 50 Hz AC supply.
Available in following chamber size :
W × H × D
1.1 × 2.3 × 1.1 mts
YSI445 Same as YSI-444 but with controlled Humidity
upto 95% ± 5%.
YSI446 Same as YSI-445 but temp. Range from 10°C
