Vaccine/Semen Storage Cabinet

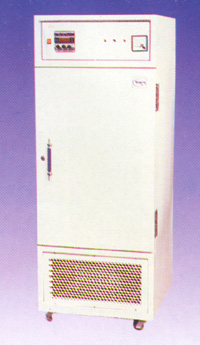

YSI–575 Yorco Vaccine Storage Cabinet

Yorco Vaccine Storage Cabinet are the most versatile unit for Vaccine Storage. Inner chamber made of St. Steel external M.S. sheet body of rigid steel frame. Insulated thoroughly and provided with face fitting doors, complete with self- closing hinges lockable fasteners. Cabinet is fully sealed to avoid spoilage and contamination from external environment. Temp. ranges from 4°C to 6°C. Available in various sizes for keeping vaccines bottles. Drawers with clear perspex fronts and index card holders. Temp. sensed by Pt 100 and controlled and displayed by Solid State Electronic temp. controller-cum-indicator. Audiovisual alarms are triggered, in the event of fluctuations exceeding permitted tolerance level in temperature.
Suitable to work on 220 V, single phase, 50 Hz, AC supply.

Available in following size
• 450 × 400 × 850 mm
• 600 × 675 × 850 mm

Optional Accessories
• Weekly Temp. recorder
• Stabilizer

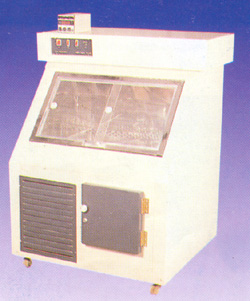

YSI–578 Yorco frozen semen storage cabinet

Designed to provide a cold working place for scientist or doctors to store and manoeuver the frozen semen of animals. Doubled walled with mild steel panels for outer surface and polished stainless steel inner chamber with insulation in between. Exterior surfaces are chemically created, antirust coated and finished with powder coated paint. Front opening door is made of clear acrylic sheet. The whole unit is mounted on castor wheels for easy movement. The heavy duty hermetically sealed cooling system provides temperature of 4°C in working area. Cooling system has a fan mounted next to the compressor to prevent over heating. Design allows handling the unit with the door open condition for extended period of time. Solid state temperature controller cum digital display maintains the chamber temperature accurately between 3°C to 4°C. Heavy duty blowers are mounted for uniform circulation of air with in the chamber maintaining positive flow of air. This minimises the temperature gradient within the chamber.

Technical Features
Temp. Range : Fixed at 3°C to 4°C.
Temp. Controller : Solid State
Temp. Reading : Digital Display
Insulation : 75 mm
Cooling System : Hermetically sealed cooling system with fan cooled condenser and compressor
Internal Circulation : Tangential air flow recycle type
Front Door : 8 mm thick acrylic sliding door
Illumination : 40 Watts Fluorescent tube with external switch
Front Panel : Houses all controls
Gas/Vacuum Cock : 2 Nos.
Working Table : Sunmica Table/S.S. Sheet
Working Chamber : Stainless Steel

Size of the Chamber
• 188 × 660 × 1250 mm

Optional Accessories
• Built in U.V. Germicidal Light.
• Voltage Stabilizer
• Recorder
