Incubators


YsI–437 Yorco Incubator

The perfect choice for reliable day to day operation in variety of uses. Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determination etc.
Construction :– YORCO Incubators are sturdy, double walled construction with complete inner chamber made of Anodized Aluminium or Highly Polished Stainless Steel. Outer chamber is made of Mild Steel Sheet, duly pretreated and finished with durable. The 65mm gap between the walls is filled with special grade insulation material for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 3 removable shelves. Shelves are made of expanded metal in case of Alum. Chamber or of S.S. Sheet.
It has two doors. The outer door is insulated and is fitted with heavy hinges. Inner door is made of glass panel mounted in a wooden frame to facilitate inspection of samples, without disturbing the chamber temperature.

Heating Elements :– Heating elements, made of high grade imported nichrome wire are insulated inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.

Temperature Control :– Temperature is controlled by imported capillary type thermostat from 5°C above ambient to 60°C ±0.5°C. Temperature control knob is graduated in centigrade degrees after actually observing the temperature in steady state.

Ventilation :– Air ventilators port are provided on sides at top for ventilate fumes & to assist convection process.
Control Panel :– The equipment is provided with a panel having a thermostat control knob, ON/OFF switch and indicating light.

Power Requirement :– Supplied with cord and plug. Suitable to operate on 220 V single phase, 50 Hz, AC supply.

Size of inner chamber :–
W × H × D No. of Shelves
300 × 300 × 300 mm 2
355 × 355 × 355 mm 2
455 × 455 × 455 mm 2
455 × 605 × 455 mm 3
605 × 605 × 605 mm 3
605 × 910 × 455 mm 3
605 × 910 × 605 mm 3

Optional Accessories :–
• Air Circulating Fan.
• Digital Display Temp. Indicator.
• Digital Display Temp. Controller-Cum-Indicator in lieu of thermostat.
• Micro Processor based PID temp. controller-cum-indicator in lieu of thermostat.
• Timer

Spare :– Thermometer.

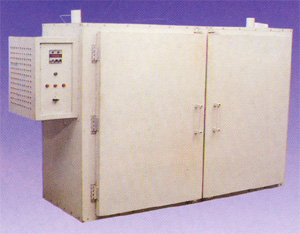

YSI–436T Yorco Tray Dryer

Same as YSI-436 but with aluminium trays & M.S. Trolley.

Size of Inner chamber :–
 W   ×  H   ×   D               Tray        Load
430 × 840 × 915 mm         12            4 kw
915 × 840 × 915 mm         24            6 kw
965 × 1275 × 1450 mm      48           10 kw
965 × 1700 × 1700 mm      96           20 kw
